Introduction
The vial liquid filling line is composed of ultrasonic bottle washing machine, sterilization dryer, filling and stoppering machine, capping machine. It is a high-efficient, accurate and safe filling solution and widely used in pharmaceutical, biotechnology, food, cosmetics and other fields. With a quite mature technology and application, it has passed the long-term testing in the market, and recognized by the industry.
Ultrasonic Vertical Bottle Washing Machine
(1) It is also often used for cleaning oral liquid bottles and ampoules besides vials. It is applicable to many sizes and easy to replace change parts.
(2)Take the QCL40 bottle washing machine, which is the most widely used and applicable to the most sizes, as an example, it is applicable to 2 to 100ml bottles and its production capacity is 4000 to 9600pcs/h.
(3)The multiple cleaning ways ensure the cleanliness of the bottle after cleaning. First, ultrasonic cleaning is adopted to remove the dirt adhered to the vial wall, and then filtered water and air are used to alternately spray and dry the inner and outer walls of the vial for many times, so that the foreign matter in the vial is discharged.
(4)The stainless steel conveyor belt is adopted to convey bottles with excellent stability. The way of screw separating bottles and use of rotary table fully ensure the smooth vials feeding and discharging and effectively reduce the broken vial rate.
(5)The water and air pipelines used for cleaning are separated, without cross contamination, which complies with GMP regulations.
(6)The water temperature for cleaning is maintained at about 50-60ºC. The circulating water tank is equipped with stainless steel heating pipe, which can be set to adjust the circulating water temperature. If the temperature is not raised to the specified value, the equipment gives an alarm and does not start.
(7)The 10μm circulating water filter and 0.22μm purified water or WFI filter are used, and the brand is Pall (can be adjusted according to customer requirements).
Hot Air Circulation Sterilization Tunnel Oven
(1)The oven adopts the hot air laminar flow to sterilize vials at high temperature for a short time, and it is widely used in drying and depyrogenation of antibiotic vials, oral liquid bottles and ampoules after cleaning.
(2)The highest temperature of the heating section can reach 350ºC or more, and the outlet temperature of the cooling section is less than and equal to room temperature +15ºC.
(3)The hot air circulation heating mode is adopted to make the internal temperature of each section uniform, which is efficient and energy-saving;
(4)With the function of preventing HEPA filter burning at the high-temperature section in case of power failure, making operation safe;
(5)The air speed of each section of the oven is controlled by the fan frequency converter, and the system is sensitive and stable in performance.
(6)With ultrasonic self-cleaning function of mesh belt, it reduces the labor strength of manual periodic cleaning.
(7)The high temperature section adopts multi-channel PID control, modular structure, and has more accurate temperature control.
(8)It is equipped with multiple differential pressure gauges and temperature sensors to monitor the differential pressure and temperature of each section in real time, and with multi-channel temperature recorder to print temperature curves in real time. The brands we used are international first-class.
Vial Filling and Stoppering Machine

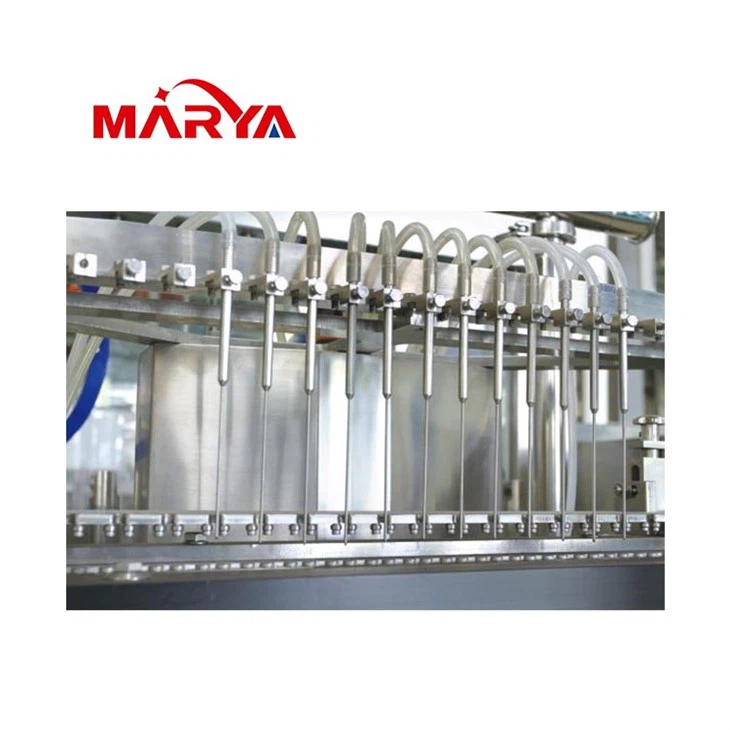

(1)The filling machine is the core equipment of the vial production line and widely used in sterile injection, cosmetic medicine, oral liquid, freeze-dried powder and other fields. It can be said that other equipment of the vial production line is equipped for this machine.
(2)The machine's construction and materials comply with GMP standards. The parts in direct or indirect contact with the product such as filling needle and stopper hopper are made of stainless steel 316L or medical-grade silica gel, while non-contact parts such as exterior parts and laminar flow supports are made of SS304 or POM.
(3)An O-rabs system is equipped, which includes class A laminar flow, glove ports, and interlocking safety doors, and door-opening alarm to restrict operator's operation and access; it also has built-in ports for dust particle, airborne viable bacteria, and air speed detection.
(4)The equipment is designed for excellent stability. The high-precision servo motor or speed regulating motor is adopted for the moving parts, which has simple structure, low failure rate and more stable operation.
(5)With alarm and shutdown function: in case of abnormal phenomenon in operation, it can give an alarm and stop running in time, display fault point, and record and export various data when fault occurs.
(6)We use international first-class electrical brand with long service life and stable performance.
(7)The adopted rotary stoppering is stable and high-efficient with fast speed. It also has function of no bottle no stoppering.
(8)With multiple detection stations such as stoppering overload protection, stopper missing detection, filling overload protection, out-pf-limit air speed of dust particles, it greatly reduces abnormal conditions which affect normal production.
Vial Capping Machine
(1)The capping machine is used for the last sealing process of 2 to 100ml vials as the last equipment of the vial filling production line.
(2)The machine adopts the way of rotary tracking capping and rolling aluminum cap, which has fast capping speed, high productivity, firm and smooth capping mouth without scratch and high qualified rate.
(3)The whole machine adopts modular design, and the mold and parts in contact with product are easy to disassemble and replace. It is also applicable to many vial sizes.
(4)It is equipped with O-rabs and class 100 laminar flow hood and can provide local class A environment to protect products. The equipment working environment is recommended for class C or B.
(5)With multiple sensors interlocked with the filling machine, it can realize the functions of no bottle no capping, no stopper no capping, no cap alarm, etc.
(6)With the cap detection function, uncapped bottles will be rejected.
