Introduction
The pharmaceutical mixer can complete many functions such as automatic lifting, mixing, and lowering. It can meet the requirements for mixing small and large batches of materials and multiple varieties if equipped with single bin or multi-bins of different specifications. It is an ideal facility for mixing materials in pharmaceutical factories, and is widely used in pharmaceutical, chemical, food and other industries.

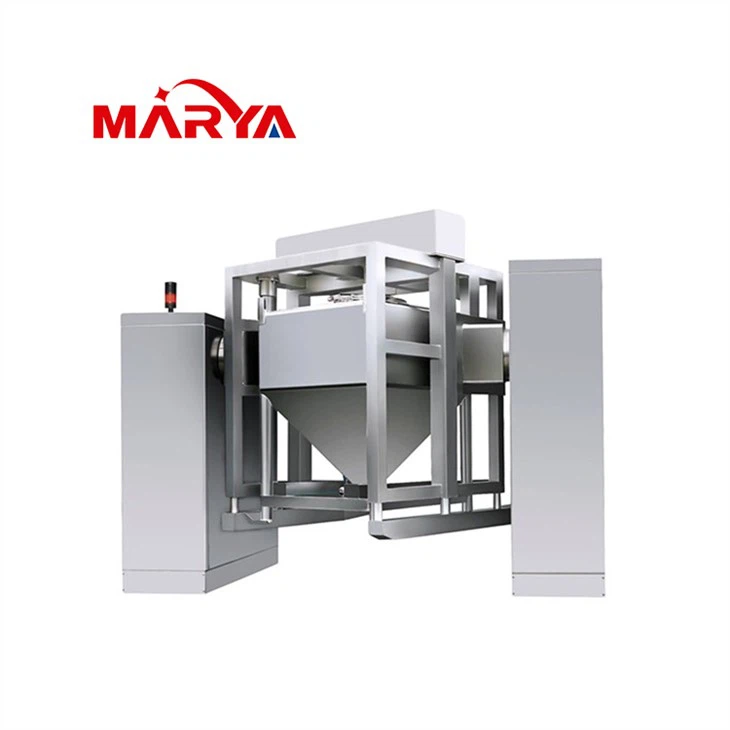

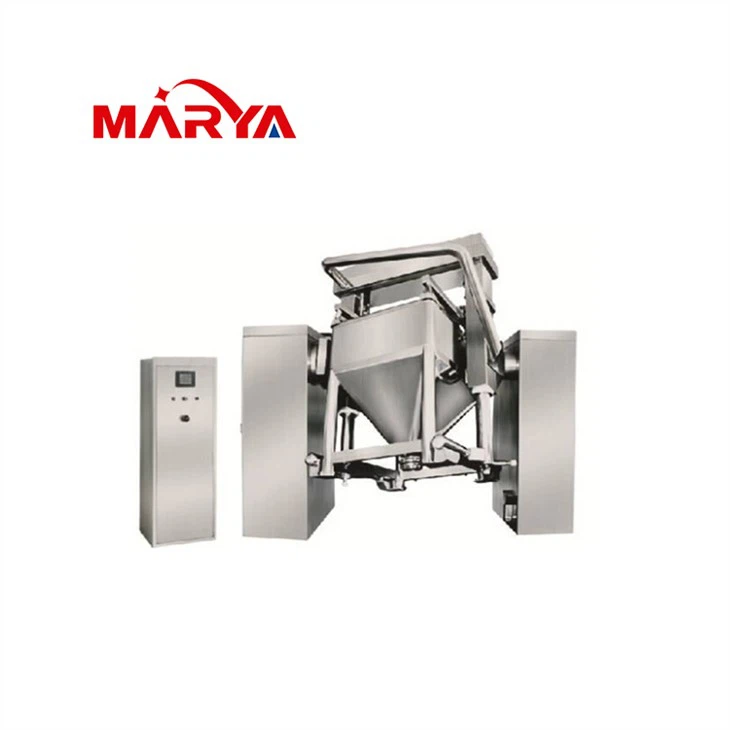

The pharmaceutical mixer is composed of two bases, rotating frame, rotating system, lifting system, control system and other components. Users can push the bin into the rotating frame, position the rotating frame, start the control system, lift the frame to the mixing height and then tighten screws. The system can automatically mix materials according to the set time, speed and other data. After the mixing operation is over, the frame stops vertically, the bin automatically drops to the ground, the whole machine stops, and users can print the process data. And the machine can enter into the next process after users push the bin out of the frame.
Performance Characteristics
1. The pharmaceutical mixer is of rational structural design and stable performance, and is easy to operate;
2. The rotation of the mixer is completed by a set of motors and a cycloidal reducer. Two screws are used to mix materials asymmetrically, which makes the mixing range large and the mixing speed fast. The mixer is more suitable for mixing two or more kinds of materials having large difference in quantity.
3. The parts directly exposed to materials are all made of stainless steel;
4. The rotating body (mixing bin) has a symmetrical plane, which forms an angle of 30° with the axis. Materials in the bin turn with the rotating body and move tangentially along the wall at the same time, resulting in strong overturning and high-speed tangential movement and thus achieving the optimal mixing effect.
5. Fully automatic PLC (programmable logic controller) control is adopted, and infrared safety devices and discharge butterfly valves for preventing mis-operations are set to ensure safe production.
6. A single mixer can be configured with multiple bins of various specifications;
7. The pharmaceutical mixer effectively avoids dust and cross contamination, reduces material loss, controls hierarchy of different materials and optimizes the production process;
8. The mixer utilizes vertical high-speed rotating blades installed at the bottom of the machine to produce centrifugal force, which acts on materials and makes them to form a vortex shape with the outer materials rolling upward and the center going downward, thus fully stirring materials in the inner and outer and at upper and lower layers;
9. The mixer uses high-speed crushing blades installed on the side wall of the machine to break the outermost rolling materials, and at the same time stirring the materials, increase the relative movement between materials and improve the mixing effect;
10. The joint action of the above-mentioned two kinds of blades is able to mix materials fully and uniformly in a short period of time. The efficiency of the mixer is incomparable nationwide;
11. The mixing chamber has no dead corners. Users can add materials to the mixing chamber quickly and clean it easily;
12. Parts of the machine directly exposed to materials are made of stainless steel. Since there is no volatilization, deterioration or loss of materials during the mixing process, the process ratio is guaranteed;
13. This mixer is suitable for mixing dry and wet materials of different proportions and is especially suitable for mixing and stirring various complex materials, such as chicken flavor, medical granules, solid beverage, etc.
14. The mixer is fully in accordance with the GMP requirements for medicine production.
15. Customization: Our company can produce customized products according to customers' requirements.
