Introduction

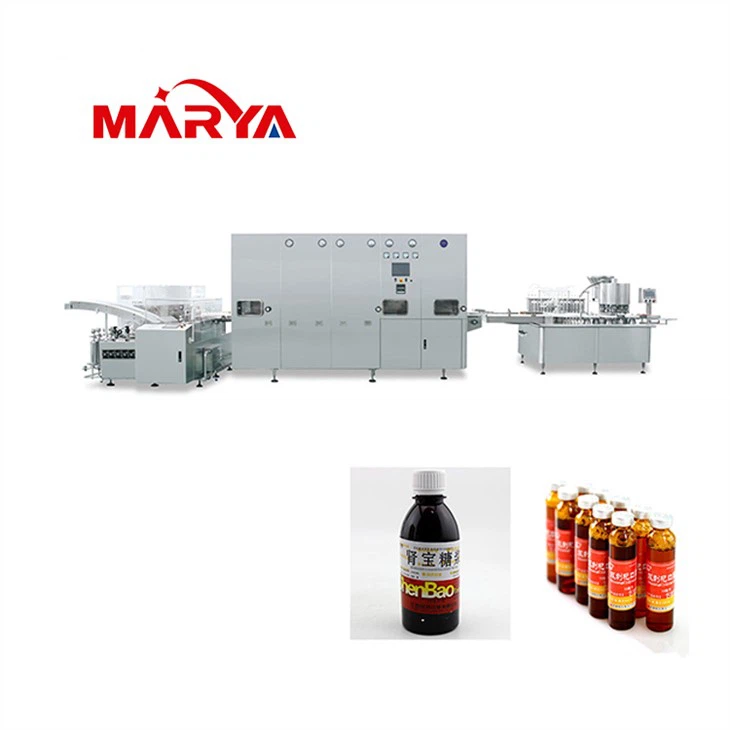

The oral liquid filling machine is composed of vertical ultrasonic bottle washing machine, drying sterilizing machine and filling capping machine. All those three single machines can work together as a unit, or be used separately. The machine is suitable for the production of 5~25ml oral liquid bottles; the production line can complete multiple processes automatically, including water spraying, ultrasonic washing, compressed air blowing, circulating water flushing, compressed air blowing, fresh water flushing, compressed air blowing, preheating, high temperature sterilizing, cooling, bottle unscrambling, filling, stopper unscrambling, capping, loading onto trays and so on.
The oral liquid bottle filling and capping machine is an automatic filling facility that integrates the processes of bottle unscrambling, bottle conveying, quantitative filling, cap unscrambling, cap sending, capping, bottle discharge, etc. Because this product can fill a variety of glass bottles of different types and specifications with liquids, it has a wide range of application and is suitable for pharmaceutical factories, health products companies, chemical industries and other institutions. It can be used for filling oral solution glass bottles, medical glass bottles, tube-made screw thread glass bottles and others.
Performance Characteristics
1. The oral liquid bottle washing drying filling capping production line uses a mechanical arm to hold bottles, suitable for oral liquid bottles of various specifications;

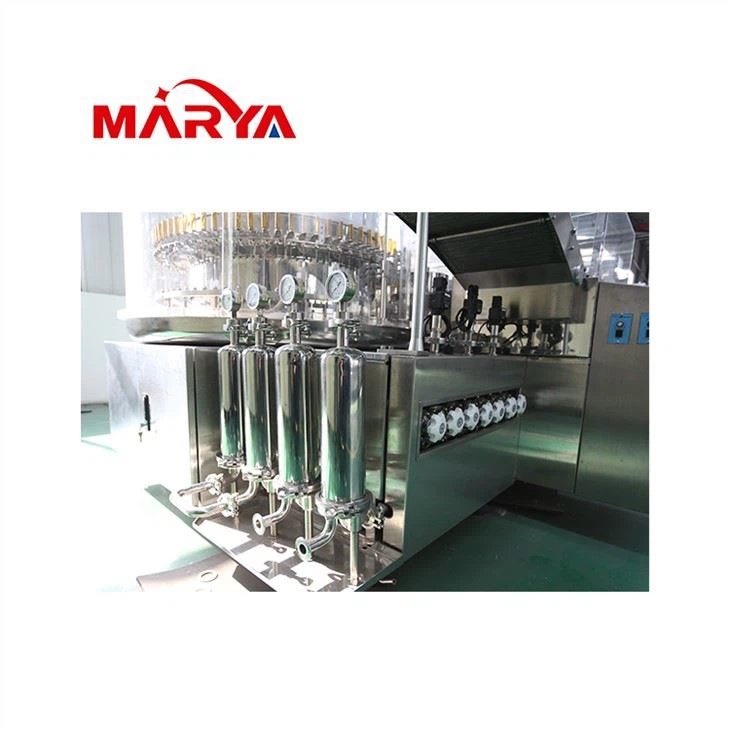

2. The bottle washing machine inserts the needles into the bottles for spraying water and air one by one, with good cleaning effect and saving energy; and it is equipped with a anti-vibration rack for spraying needles, so as to improve the inserting accuracy, reduce the occurrence of bottle breaking and ensure versatility.
3. The sterilization and drying machine is a tunnel structure, adopting far infrared ray or hot air circulating for heating air; the double layer heating tube has very good temperature uniformity.

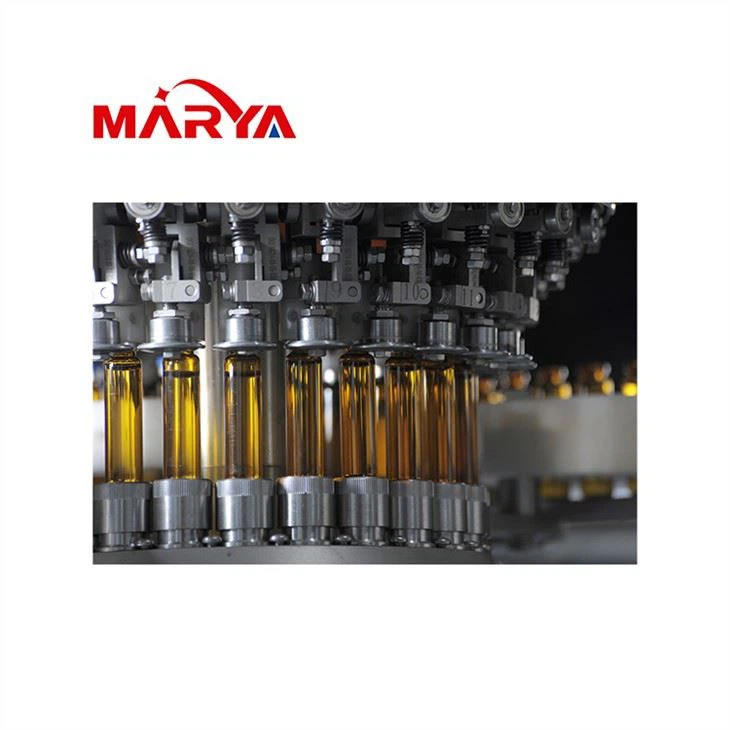

4. The oral liquid filling and capping machine adopts stainless steel pump or ceramic pump for filling. The measurement of filling volume is accurate, and the machine has defoaming function and prevents dripping.
5. The oral liquid filling machine can realize no bottle no filling, no bottle no cap sending or capping.
6. The oral liquid filling machine caps bottles slowly and thus the bottle breakage rate is low. The whole machine adopts frequency conversion and stepless speed regulation.

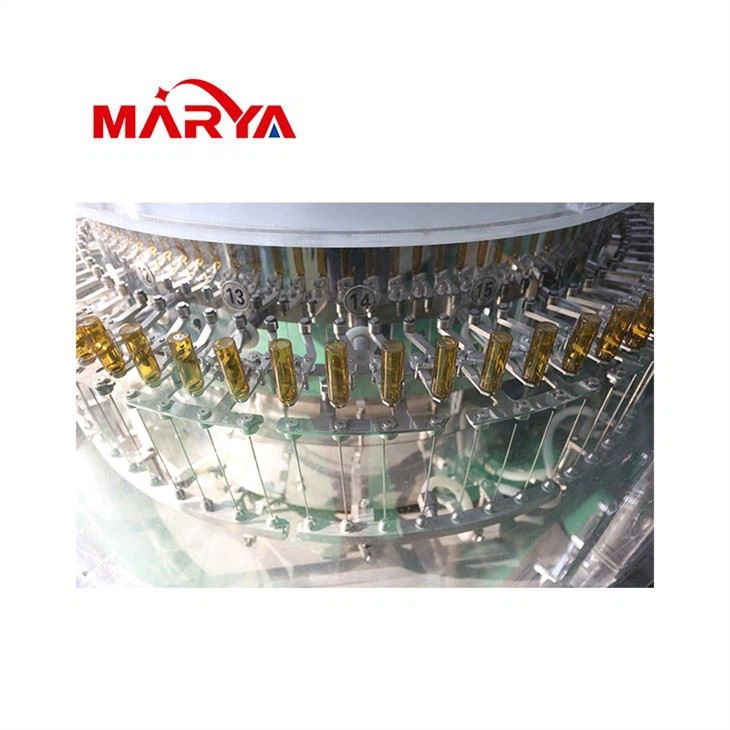

7. The filling and capping machine is of novel design, high filling accuracy and unique filling method. It uses a single syringe needle to fill quantitative oral liquids into bottles without foam, making products durable. The bottle feeding and cap feeding devices have highly automatic unscrambling functions, and the filling capping machine has automatic no bottle no filling function, thus being safe and reliable.
8. The filling head consists of anti-dripping and special lifting devices, the filling volume and the filling speed are adjustable, and the body of the machine is made of stainless steel. The machine meets the GMP requirements and is reliable and durable.
If you are looking for Oral Liquid Filling Machine manufacturers, please feel free to contact us for the price of Oral Liquid Filling Machine and a more detailed introduction.
Extended read:
The filling machine is mainly divided into the following kinds
1. Atmospheric pressure filling machine is filled by liquid weight under atmospheric pressure. This kind of filling machine is divided into two kinds of time filling and constant volume filling, only suitable for filling low viscosity liquid without gas, such as milk, wine and so on.
2. The pressure filling machine is filled at a pressure higher than atmospheric pressure, which can also be divided into two types: one is that the pressure in the liquid storage cylinder is equal to the pressure in the bottle, and it is filled by the liquid's dead weight into the bottle, which is called constant pressure filling; The other is that the pressure in the liquid storage cylinder is higher than the pressure in the bottle, and the liquid flows into the bottle by the pressure difference. This method is commonly used in high-speed production lines. Pressure filling machine is suitable for filling liquid containing gas, such as beer, soda and so on.
3. Vacuum filling machine is used to fill bottles under pressure lower than atmospheric pressure. The filling machine has the advantages of simple structure, high efficiency and wide adaptability to the viscosity of materials, such as oil, syrup, fruit wine and so on.
4. Oil filling machine, can fill all kinds of oil, such as edible oil, lubricating oil, peanut oil, soybean oil and so on. This kind of filling machine is specially developed for the filling of oil materials. It can realize the flexible configuration of manual operation and unmanned operation.
5. Plug filling machine, which is widely used in medicine, food, daily chemical, grease, pesticide and other special industries, can fill a variety of liquid, paste products, such as alcohol disinfectant, hand sanitizer, toothpaste, ointment, cosmetics and other items.
6. Liquid filling machine, mainly used for lotion, nursing solution, oral solution, disinfectant, nutrient solution, alcohol, injection, pesticide, medicine, perfume, edible oil, lubricating oil and special industries of liquid filling. Automatic filling machine process parts, all made of stainless steel, high balance tank or self-priming pump quantitative filling, direct heat sealing and cutting, bag size, packaging weight, sealing and cutting temperature regulation is convenient and reliable, production date ribbon printing, side sealing, back sealing, photoelectric tracking.
7. Automatic paste filling machine is suitable for filling various viscosity products from water agent to cream. It is an ideal filling machine for daily chemical, medicine, food, pesticide and other industries.
8. Sauce filling machine, which is suitable for filling thick sauce such as pepper sauce, bean sauce, peanut butter, jam, butter hot pot bottom material and red oil hot pot bottom material with particles and large concentration in condiments. Guangzhou Constant irrigation professional production irrigation equipment to support non-standard customization
